The ThinkPad Universal USB-C Dock delivers powerful connectivity, flexible compatibility, and simplified workstation management through a single cable. This dock is designed for Lenovo ThinkPad laptops that require a 135W power supply.
Key Details
- One Dock. No Limits: Engineered for performance, the ThinkPad Universal USB-C Dock increases productivity with dynamic power delivery of up to 100W to compatible notebooks.
- One Cable. No Hassle: With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock connects your entire workspace through a single cable while helping keep your desk clean and organized.
- Entire Fleet. One Manager: Built for enterprise environments, the ThinkPad Universal USB-C Dock supports IT management tools such as PXE boot, Wake-on-LAN, and MAC address passthrough on ThinkPad systems, along with silent firmware updates and remote device management.

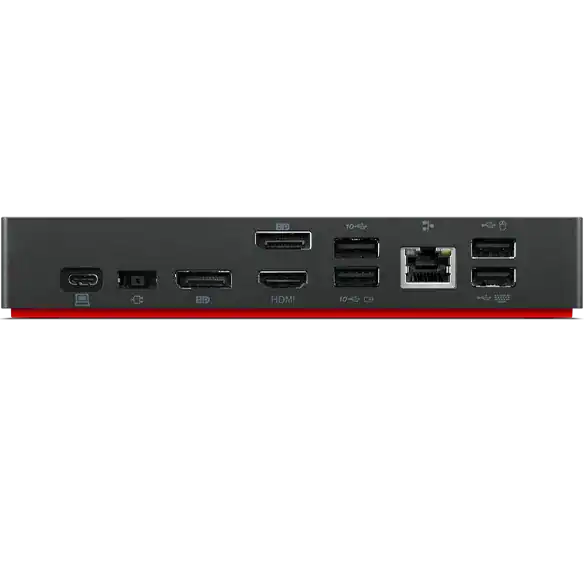

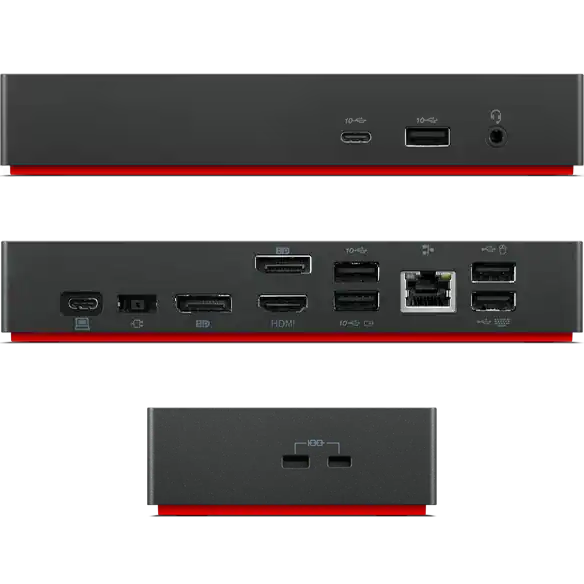

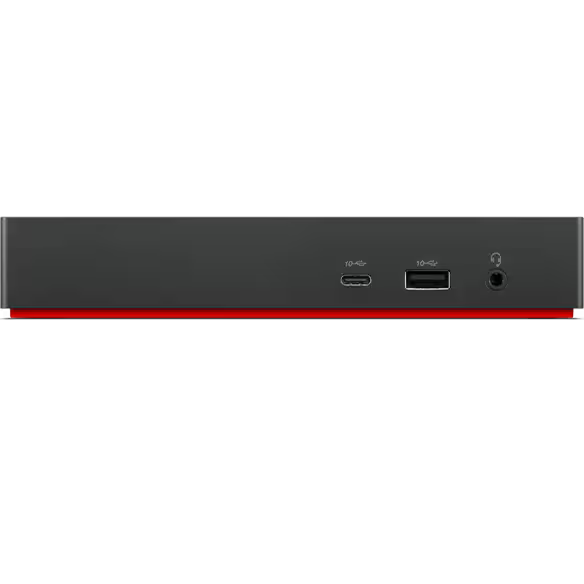

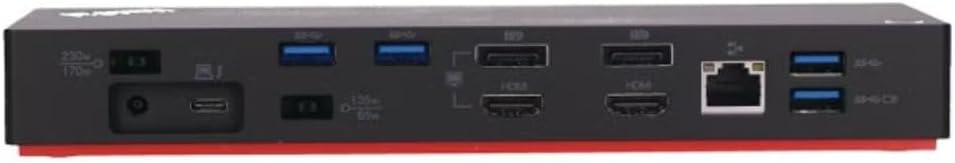

All the right connections.
| 1 | USB-C |
| 2 | USB 3.2 Gen 2 |
| 3 | Combo Audio Jack |
| 4 | DisplayPort |
| 5 | USB 3.2 Gen 2 |
| 6 | USB 2.0 |
| 7 | USB-C (for connecting computer) |
| 8 | Power Connector |
| 9 | DisplayPort |
| 10 | HDMI |
| 11 | USB 3.2 Gen 2 |
| 12 | Gigabit Ethernet |
| 13 | USB 2.0 |

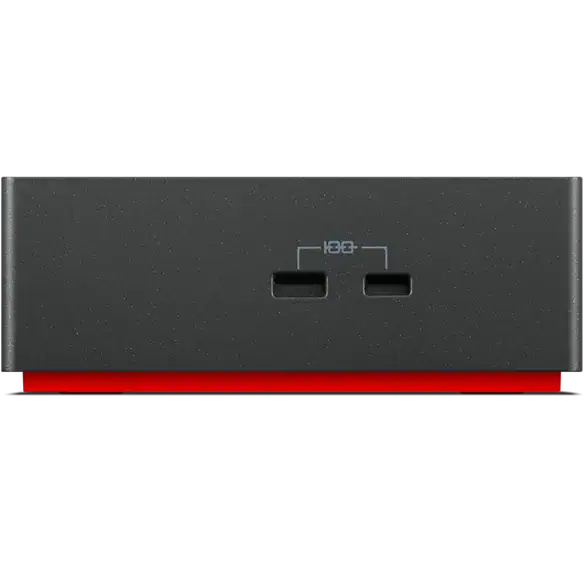

| 14 | 2 × Security Lock Slots |
The ThinkPad Universal USB-C Dock is an innovative docking solution designed to expand connectivity and simplify modern workspaces. It provides broad compatibility with USB-C laptops while delivering dynamic power charging of up to 100W to compatible notebooks. With automated firmware updates and true plug-and-play functionality, the dock makes it easy to create a powerful and efficient workstation.
Designed to support both single-vendor and mixed-PC environments, the ThinkPad Universal USB-C Dock allows users to connect most computers that support industry-standard USB-C connectivity. This flexibility makes it an ideal docking solution for organizations and individuals seeking reliable expansion and simplified device management.
Lenovo USB-C and Thunderbolt docks function with notebooks that support industry-standard USB-C Alt Mode or Thunderbolt protocols through their USB-C port. Lenovo ThinkPad systems may support additional features such as MAC address passthrough, Wake-on-LAN (WOL), and mirrored power button functionality. These features may not be available on certain Lenovo notebooks or on non-Lenovo branded systems.
Tech Specs
| General | |
|---|---|
| Brand | ThinkPad |
| Mechanical | |
| Color | Black |
| Dimensions | |
| Packed Dimensions (L × D × H) | 210 × 158 × 75 mm (6.73 × 3.15 × 1.21 inches) |
| Weight | 388 g (0.86 lbs) |
| Packed Weight | 955 g (2.11 lbs) |
| System | |
| OS Requirements | OS Independent |
| Driver Needed | Yes |
| Ports | |
| USB Ports | 3 × USB-A 3.2 Gen 2, 2 × USB 2.0, 1 × USB-C 3.2 Gen 2 |
| Video Ports | 2 × DisplayPort, 1 × HDMI |
| Ethernet | 1 × Gigabit Ethernet |
| Audio Ports | 1 × Combo Audio Jack |
| Display Support | |
| Max External Monitors | 3 |
| Refresh Rate | 2 × 3840×2160 @ 60Hz, 1 × 3840×2160 @ 30Hz |
| Power | |

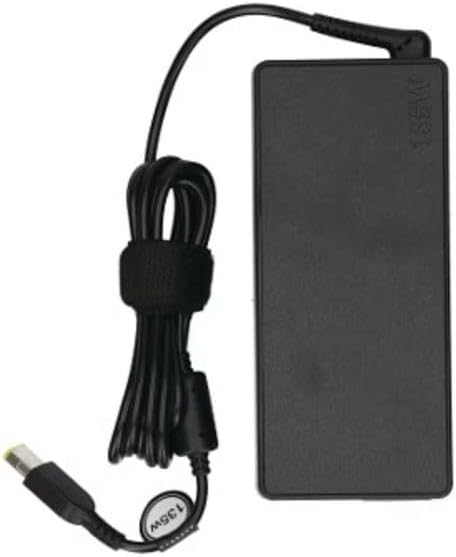

| Input Power | 135W |
| Output Power | 65W with 90W adapter connected, 100W with 135W adapter connected |
| Power Delivery | Yes |
| Power Button | Yes |
| Charging Port | DC-IN |
| Environmental | |
| Maximum Operating Temperature | 35℃ |
| Minimum Operating Temperature | 0℃ |
| Minimum Relative Humidity | 20% |
| Maximum Relative Humidity | 95% (no condensation) |
| Physical | |
| Length | 171 mm (6.73 inches) |
| Depth | 80 mm (3.15 inches) |
| Height | 30.75 mm (1.21 inches) |
| Physical Security | 2 × Security Lock Slot |
| Warranty | |
| Warranty Type | CRU |
| Warranty Period | 3 Years |
| Certifications | |
| Agency Approvals | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV-Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM |
| Packaging | |
| Package Type | Brown Box |
| AC Plug | Slim-tip |
| Attachment | Size |
|---|---|
 Lenovo 135W Dock Compatibility List.pdf | 5.19 MB |
