Expand the capabilities of your USB Type-C compatible laptop with the 8-in-1 USB Type-C Mini Dock from Lenovo.

Key Features
  • USB Type-C Host Connection
  • HDMI 2.0 & VGA Ports
  • USB Type-C Charging Port
  • Gigabit Ethernet Port
  • Includes 60W Power Adapter
  • USB 3.1 Gen 1 Type-A & Type-C Ports
  • Supports Up to 3840 x 2160 (HDMI)
  • 45W Power Delivery
  • USB 2.0 Type-A Port | 3.5mm Audio Jack
  • Compact Design | Plug-and-Play

Lenovo USB-C Mini Dock

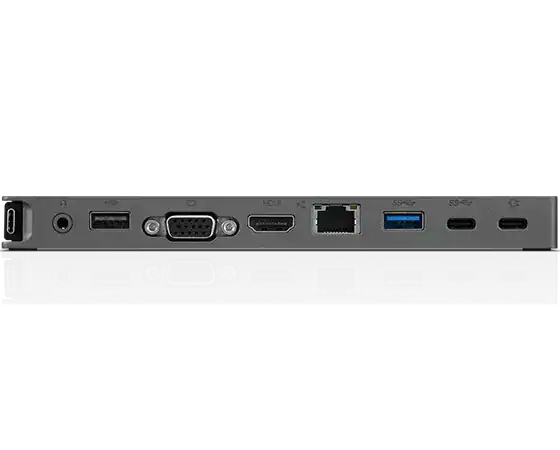

Designed with high versatility in mind, this plug-and-play dock is built to work with most USB 3.1 Type-C computer systems, regardless of the operating system. Connecting it adds one USB 3.1 Type-A port and a USB Type-C port, both of which can transfer data at up to 5 Gb/s with compatible devices. This mini dock also supports one external monitor to provide a larger viewing space for presentations or enhanced multitasking. A 3840 x 2160 resolution 4K display may be connected to the HDMI 2.0 port, or you can use a 1920 x 1080 screen with the VGA output. There's also a USB Type-C power passthrough port that delivers up to 45W of power using the included power adapter to help keep your compatible laptop charged. Other features include a 3.5mm headset jack, a USB 2.0 Type-A port, and a Gigabit Ethernet port that allows you to connect to compatible wired networks.

Plug-and-Play

Simply plug the integrated cable into your laptop's USB 3.1 Gen 1 Type-C port to get started. No specialized software or drivers are required.

Enterprise Networking and Security

The Lenovo USB Type-C mini dock supports advanced network manageability features such as PXE and Wake-On LAN. Using it with select Lenovo ThinkPad systems with MAC address passthrough support helps IT administrators to quickly identify the system in large networks.

Portable Design

The mini dock's integrated connector cable securely locks into a built-in holder, allowing you to quickly pack it away in a bag or pocket for easy travel.



Color Iron Gray
Max Number of External Monitors 1
Weight 156g
Refresh Rate 3840 x 2160 / 60 Hz
AC Plug USB-C
Hardware Requirements Full featured USB-C port including PD, DP, USB ….
Warranty Type CRU
Output Power 45W
Brand Lenovo
OS Requirements Windows 10
Packed Weight 565g
Agency Approvals CB, BSMI, SII, CU, Ukraine, Kvalitet, LOA, NOM, cULus, FCC, ICES, CE, RCM, VCCI, KCC, EAC
Audio Ports 1*3.5mm combo jack
Charging Port 1*USB-C
USB Ports 1*USB-C 3.1 Gen1, 1*USB-A 3.1 Gen1, 1*USB2.0
Video Ports 1*HDMI2.0 (support up to 4K@60Hz, HDR&HDCP2.2), 1*VGA port (support up to 1080p@60Hz), Only one external display can be connected on the dock at one time.
Ethernet 1*Giga bit RJ45
Package Type Brown Box
Packed Dimensions (L x D x H) 215*100*65
Height 17mm
Length 180mm
Depth 53mm
Warranty Period 1 year
Maximum Operating Temperature 40
Minimum Operating Temperature -5
Maximum Relative Humidity (%) 95
Minimum Relative Humidity (%) 20
Driver Needed USB to Ethernet Driver
Input Power 65W
Physical Security Feature NA
Power Button NA
Power Delivery PD3.0
Shipment Group 1*Mini Dock, 1* 65W USB-C power adapter, 1* power cord, 1*user guide, 1* warranty card
Supported Operating Systems OS Independent
General Lenovo USB-C Mini Dock_US
$159.99
