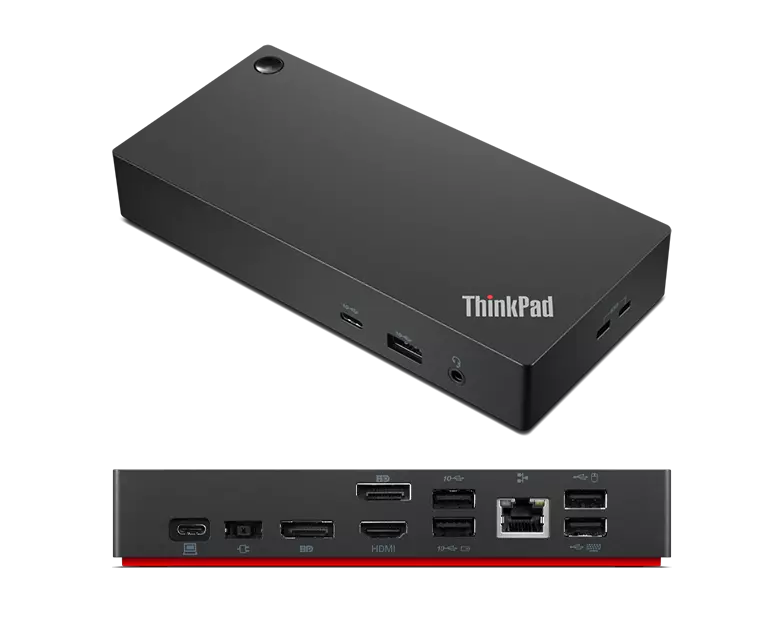

The smarter way to work, Introducing the ThinkPad Universal USB-C Dock. This advanced, universally compatible one-cable docking solution lets you work smarter, not harder. It comes with a vast array of ports, next-gen plug and play functionality, and rapid charging capabilities (up to 100W for most USB-C notebooks*). Smart enough to install critical firmware updates automatically, it’s ideal for any mixed-PC environment and home-based working, and gives you the freedom and power to do more.
* The in-box 90W power adapter charges ThinkPad and other USB-C notebooks up to 65W.
* 3-Year Warranty
-
One Dock. No Limits
-
Ideal for both office-based and remote working, it’s an IT manager’s dream—critical firmware updates are installed automatically and traditional IT tools, such as PXE boot, WOL, and MAC Address Pass Through, are also supported
-
One Cable. No Clutter
-
ThinkPad Universal USB-C Dock lets you savour blazing-fast data transfers, rapidly charge USB-C notebooks, and plug and play displays and other PC accessories. What’s more, this advanced one-cable docking solution gives you more desk-space to work and play with
-
One Remote Workforce. No Problem
-
Whether end users are in the office, hot-desking, or working from home, IT managers can remotely and securely gather key information about the dock and its attached devices—with minimal interruption to the user’s workflow
| General | ThinkPad Universal USB-C Dock |
|---|---|
| Supported Operating Systems | OS Independent |
| Color | Black |
| Max Number of External Monitors | 3 |
| Weight | 340g |
| Brand | ThinkPad |
| Output Power | 65W with 90W power adapter connected,100W with 135W power adapter connected |
| OS Requirements | OS Independent |
| Charging Port | DC-IN |
| Packed Weight | 955g |
| Agency Approvals | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM |
| Audio Ports | 1x Combo Audio Jack |
| USB Ports | 3x USB3.1, 2x USB2.0, 1x USB-C |
| Video Ports | 2x Display Port, 1x HDMI Port |
| Ethernet | 1x Gigabit Ethernet |
| Package Type | Brown Box |
| Packed Dimensions (L x D x H) | 210*158*75mm |
| Height | 30.75 mm |
| Length | 171mm |
| Depth | 80mm |
| Warranty Period | 3years |
| Maximum Operating Temperature | 35° C |
| Minimum Operating Temperature | 0° C |
| Maximum Relative Humidity (%) | 95% ( no Condensation) |
| Minimum Relative Humidity (%) | 20% |
| Driver Needed | Yes |
| Input Power | 90W |
| Physical Security Feature | 1x Security lock slot |
| Power Button | Yes |
| Power Delivery | Yes |
| Shipment Group | ThinkPad Universal USB-C Dock, 90W AC Power adapter, Power cord, Pubs, Cable |
| Warranty Type | CRU |
| AC Plug | Slim-tip |
| Refresh Rate | 2x 3840x2160 @60Hz, 1x 3840x2160 @30Hz |
- ThinkPad Universal USB-C Dock
- 1m USB-C Cable
- 90W power adapter and power code
- Warranty and Publications
