Reliable USB-C Audio for Your Reporting Setup

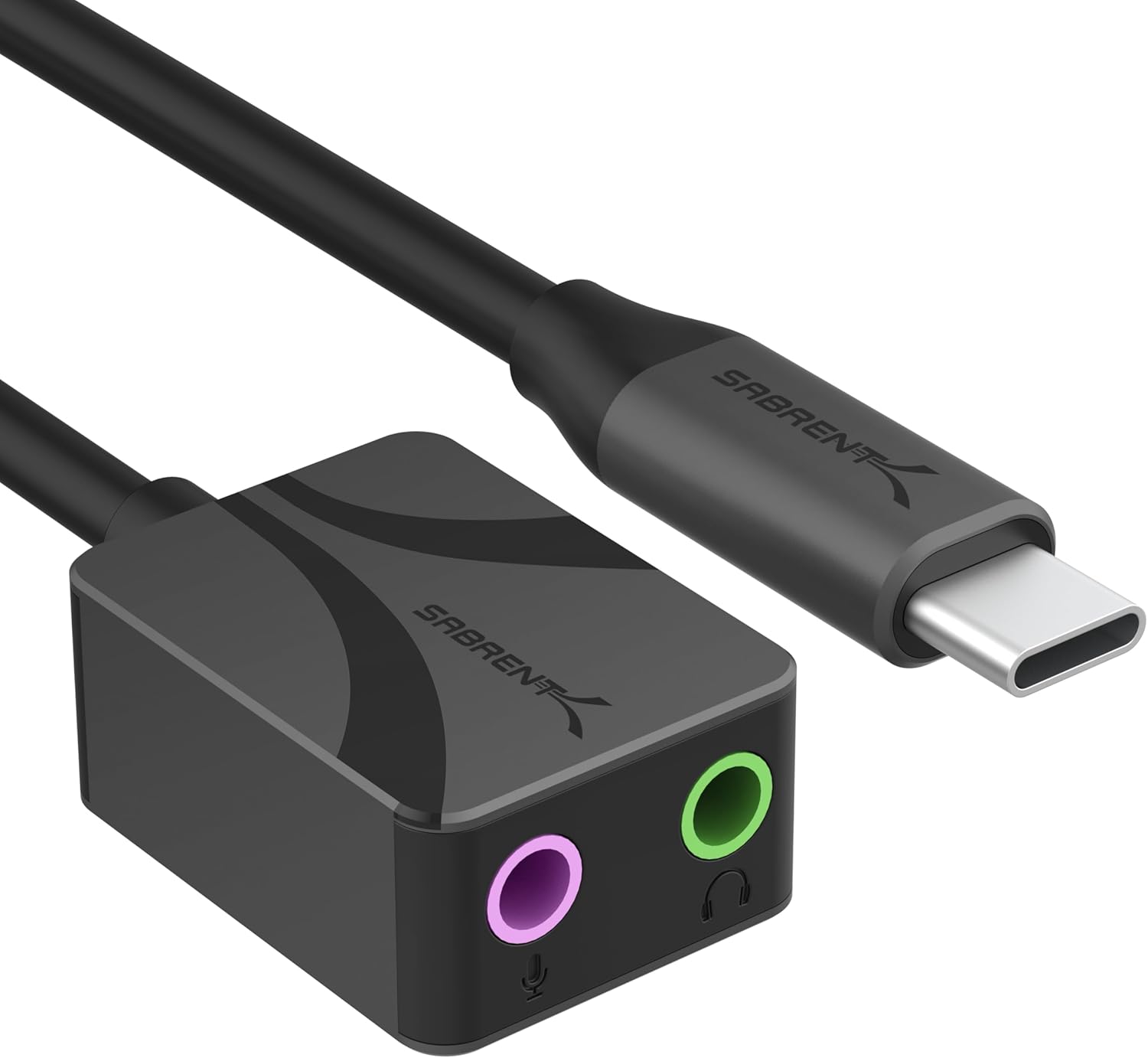

This USB-C Audio Adapter provides a simple and reliable way to add separate headphone and microphone connections to computers and devices equipped with USB-C. ASI has tested this adapter for use with compatible professional reporting and audio setups.

Features

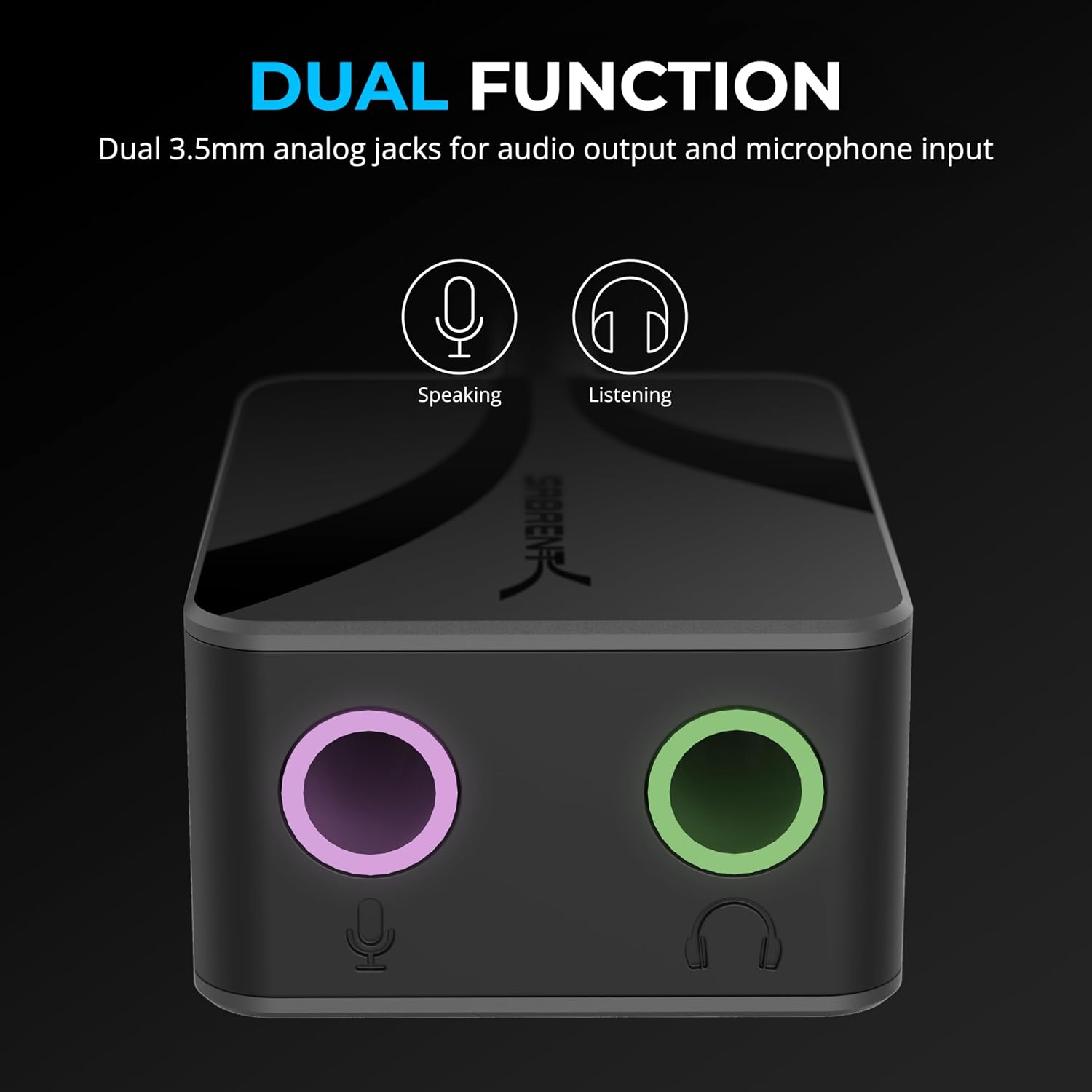

Separate Headphone & Microphone Connections

Two dedicated 3.5mm audio jacks provide a stereo output for headphones or powered speakers and a mono microphone input for a headset or desktop microphone.

Up to 24-Bit / 96kHz Audio

Supports 16-bit and 24-bit audio with sampling rates up to 96kHz for both input and output, providing greater audio capability than many basic USB sound adapters.

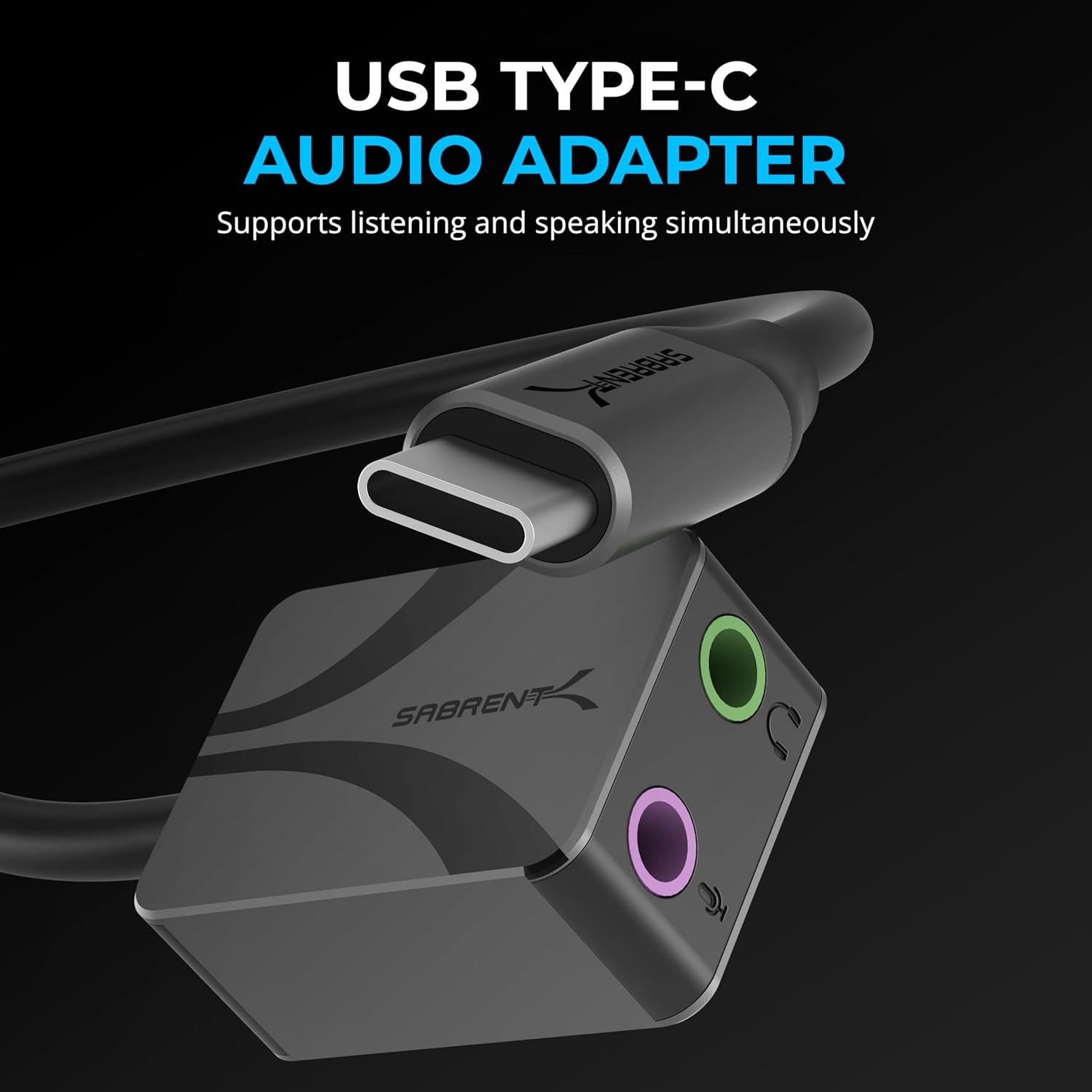

Simultaneous Input & Output

Use the microphone input and headphone output at the same time, making the adapter well suited for professional audio and reporting workflows.

True External Sound Adapter

This is more than a passive conversion cable. The adapter contains its own integrated audio chipset and functions as an external sound card.

Plug and Play

No separate drivers or external power supply are required. Connect the adapter to a compatible USB-C port and select it as your audio input or output device.

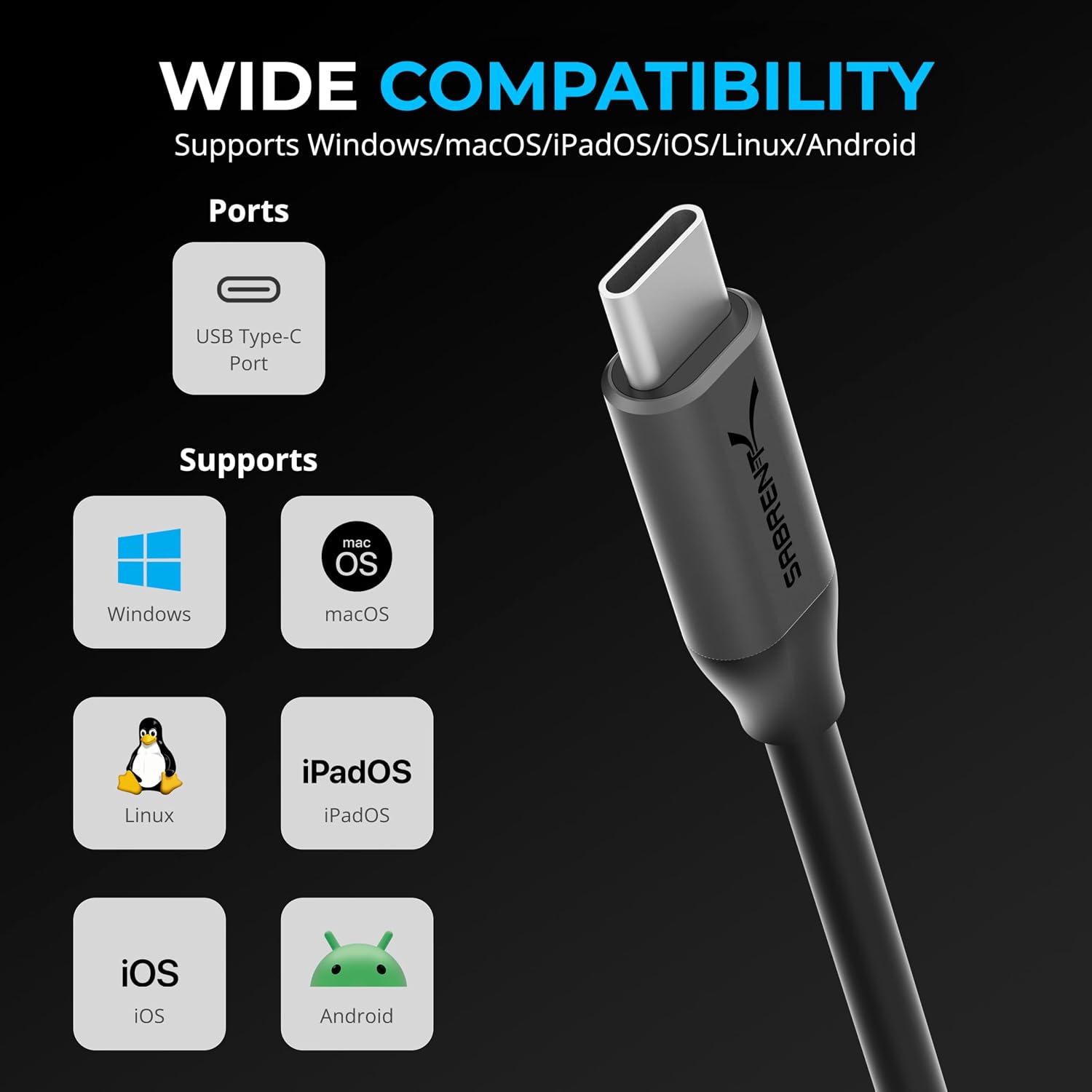

Broad Device Compatibility

Compatible with Windows, macOS, Linux, iPadOS, iOS, and Android. Compatibility with phones and tablets depends on the capabilities of the device's USB-C port.

Compact, Durable Design

The lightweight aluminum alloy housing provides durability and heat dissipation while remaining compact enough for a laptop bag or mobile reporting kit.

Integrated USB-C Cable

The USB-C connection is permanently attached to the adapter, so there is no separate cable to carry, connect, or misplace.

Host Connection
USB Type-C
USB Requirement
USB 2.0 or newer
Headphone Output
3.5mm Stereo
Microphone Input
3.5mm Mono
Simultaneous Input & Output
Yes
Audio Resolution
16-bit / 24-bit
Maximum Sample Rate
96kHz
Adapter Housing Dimensions
1.10" L x 0.80" W x 0.50" H
Manufacturer listed
Weight
0.60 oz
Housing
Aluminum alloy
USB-C Cable
Integrated
Power
USB bus-powered
External Power Supply
Not required
Driver Installation
None required
On-Adapter Volume Controls
No
Operating System Support
Windows, macOS, Linux, iPadOS, iOS, and Android
Package Contents
USB-C Audio Adapter
Manufacturer-listed dimensions refer to the adapter itself. Overall cable length is not specified by the manufacturer.
Before You Order: This adapter connects to a USB-C port. It will not fit the larger rectangular USB-A port. If your computer uses USB-A, you will need the USB Type-A Splitter instead.
$15.99
Dimensions:
2.7 x 1 x 0.5 inches
